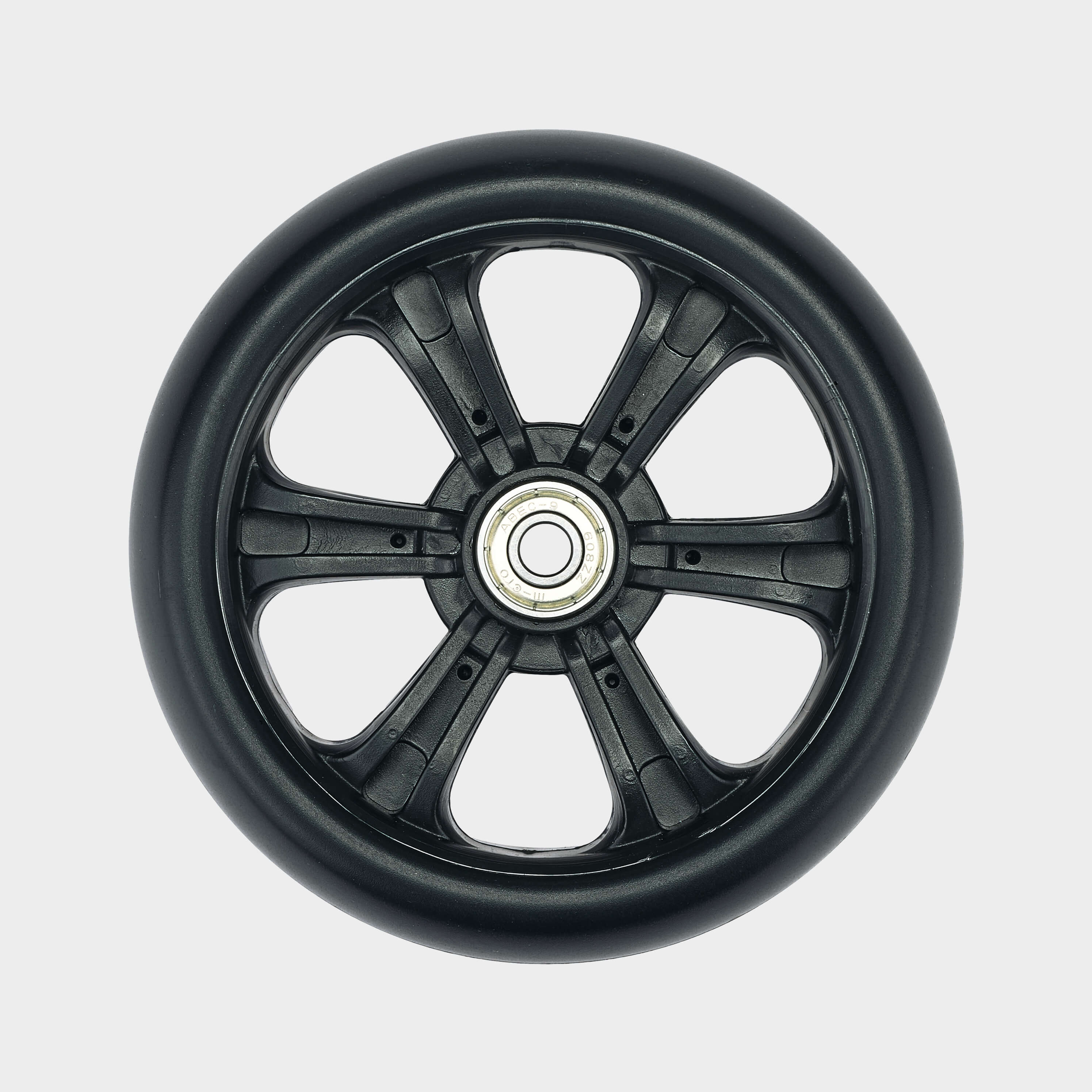

Microlino Single Wheel
This wheel fits both the front and rear. One side of the wheel has a flat edge around the rim this side goes towards the Microlino. As you look at the Microlino from the seated position the wheels on the left side are anticlockwise thread and undo and do up the opposite way to normal.
Rear: You will need 1x5mm allen key. For the left hand wheel (as you look from the seating position) you need to undo the bolt the opposite way to normal. Once the bolt is removed place the bolt through the wheel and tighten the correct way depending on which side. Tip: identify the correct bolt for each side before you start.
Front: To replace the front axle you will need 2x5mm allen keys. Hold the inside allen key and remove the outside one, as you look down on the Micolino from the sitting position the left hand wheel has an anti clockwise thread so it is undone and tightened the opposite to normal.
When refitting, ensure you have the correct bolt for the correct side place the log part of the bolt through the wheel, then place the spacer in position and put it through the steering frame then place the small part of the bolt through to tighten. Tip: match the correct bolts with the correct sides of the Microlino to make to easier to attach.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This wheel fits both the front and rear. One side of the wheel has a flat edge around the rim this side goes towards the Microlino. As you look at the Microlino from the seated position the wheels on the left side are anticlockwise thread and undo and do up the opposite way to normal.
Rear: You will need 1x5mm allen key. For the left hand wheel (as you look from the seating position) you need to undo the bolt the opposite way to normal. Once the bolt is removed place the bolt through the wheel and tighten the correct way depending on which side. Tip: identify the correct bolt for each side before you start.
Front: To replace the front axle you will need 2x5mm allen keys. Hold the inside allen key and remove the outside one, as you look down on the Micolino from the sitting position the left hand wheel has an anti clockwise thread so it is undone and tightened the opposite to normal.
When refitting, ensure you have the correct bolt for the correct side place the log part of the bolt through the wheel, then place the spacer in position and put it through the steering frame then place the small part of the bolt through to tighten. Tip: match the correct bolts with the correct sides of the Microlino to make to easier to attach.
